##Setting Up Meta Data Fields##

• Install/Activate Custom Fields Suite WordPress Plug-In, Docs
• Create new Field Group called Gallery Meta Data
• Add a Field called Gallery Images and set the type as Loop, fill out the rest of the required fields, for placement rules attach this custom meta data to WordPress type of Page or whatever your requirements are. Hit Publish Figure 1
• Next, Add additional field called Image. Hit Update Figure 2
• Next, drag Image, field we just created, under the Gallery Images it needs to be a child of the Loop, Hit Update Figure 3

##Adding Meta Data to Pages##

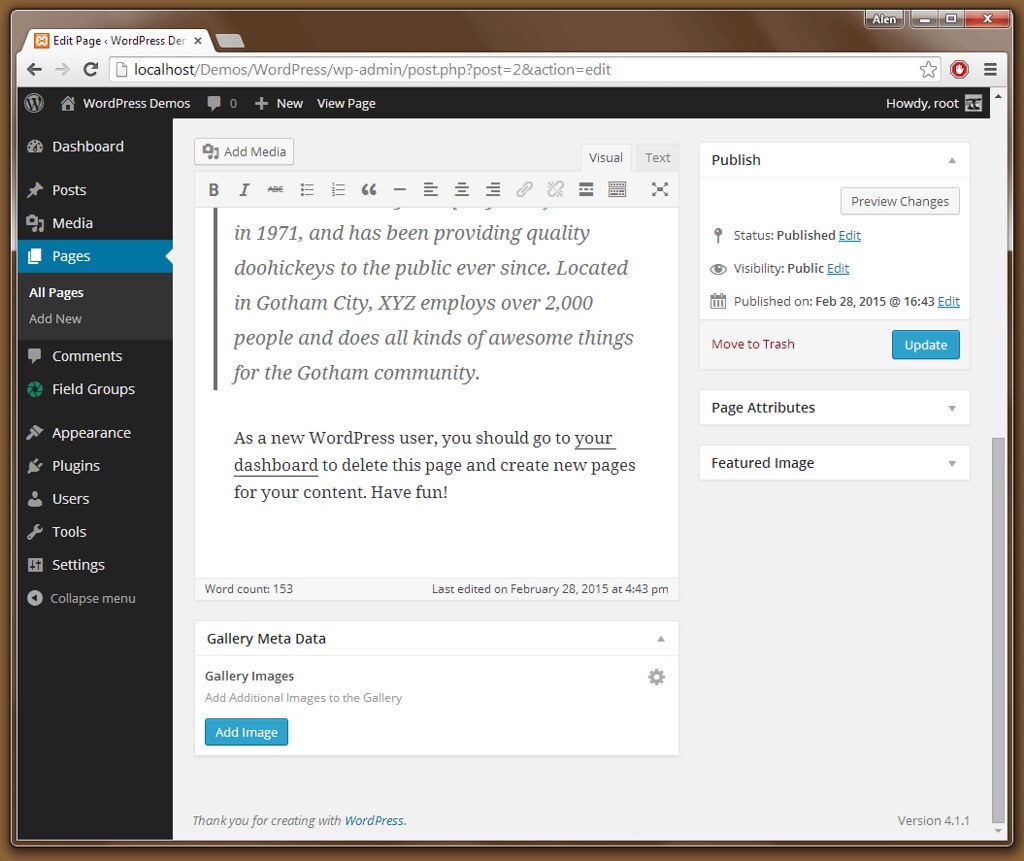

• Edit page you wish to add the Gallery Images to Figure 4
• Keep hitting Add Image to add additional images Figure 5

##Getting the Data##

  $gallery_images = CFS()->get('gallery_images');
  foreach ($gallery_images as $image) {
    echo '<img src="'.$image["image"].'"/>';
  }

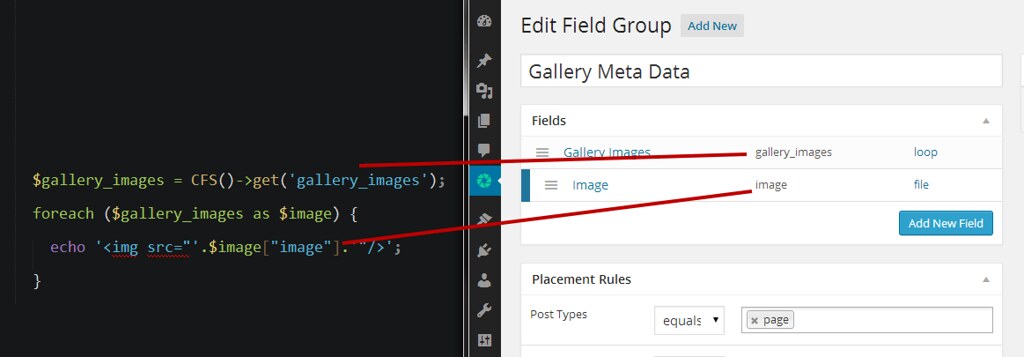

Note: for get('gallery_images'), gallery_images is the value that matches the value specified in our initial setup of Custom Meta Data fields. See Figure 6

##Figures##

Figure 1

Figure 2

Figure 3

Figure 4

Figure 5

Figure 6
